High Quality IE2/IE3/IE4 Series 4kW, 5.5HP, Three-Phase Induction Electric Motor AC Engine Asynchronous Motor
1, Three-phase asynchronous motors, developed with new techniques. Aluminium body.
2, Three phase motors are defined as totally enclosed, fan cooled, squirrel cage type and noted for their novel da gn,beautiful model, compact structure, low noise, high efficiency, large torque, excellent starting performance, asy serving, etc.
3, The motors are adopted with F class insulation and designed with assessing method for insulation system according to international practice, it have greatly reached an international advanced level of the same kind of products at the initial days of the 90s.
4, The motors can be widely used as driving equipments of various machineries, such as machine tools, blowers, pumps, compressors, transporters, agricultural and food processing.
5, Pedestal installation size and centre height and other indexes of the motor completely measured by three-phase asynchronous motor.
| Type | Putout | Speed
(r/min) |
Current
(A) | Eff.
(%) | TN
(N.m) | NoisedB
(A) | Weight
(kg) |
| KW | HP | 380V | 400V |
| YE3-80M1-2P | 0.75 | 1 | 2885 | 1.7 | 1.6 | 80.7 | 2.48 | 62 | 15 |
| YE3-80M2-2P | 1.1 | 1.5 | 2885 | 2.4 | 2.3 | 82.7 | 3.64 | 62 | 18 |
| YE3-90S-2P | 1.5 | 2 | 2895 | 3.2 | 3.0 | 84.2 | 4.95 | 67 | 23 |
| YE3-90L-2P | 2.2 | 3 | 2900 | 4.6 | 4.4 | 85.9 | 7.24 | 67 | 28 |
| YE3-100L-2P | 3 | 4 | 2890 | 6.0 | 5.7 | 87.1 | 9.91 | 74 | 39 |
| YE3-112M-2P | 4 | 5.5 | 2900 | 7.8 | 7.4 | 88.1 | 13.17 | 77 | 49 |
| YE3-132S1-2P | 5.5 | 7.5 | 2925 | 10.6 | 10.1 | 89.2 | 17.96 | 79 | 68 |
| YE3-132S2-2P | 7.5 | 10 | 2925 | 14.4 | 13.7 | 90.1 | 24.49 | 79 | 75 |
| YE3-160M1-2P | 11 | 15 | 2945 | 20.6 | 19.6 | 91.2 | 35.67 | 81 | 130 |
| YE3-160M2-2P | 15 | 20 | 2950 | 27.9 | 26.5 | 91.9 | 48.56 | 81 | 132 |
| YE3-160L-2P | 18.5 | 25 | 2945 | 34.2 | 32.5 | 92.4 | 59.99 | 81 | 151 |
| YE3-180M-2P | 22 | 30 | 2955 | 40.5 | 38.5 | 92.7 | 71.1 | 83 | 209.5 |
| YE3-200L1-2P | 30 | 40 | 2965 | 54.9 | 52.2 | 93.3 | 96.63 | 84 | 246 |
| YE3-200L2-2P | 37 | 50 | 2965 | 67.4 | 64.0 | 93.7 | 119.17 | 84 | 265 |
| YE3-225M-2P | 45 | 60 | 2965 | 80.8 | 76.8 | 94.0 | 144.94 | 86 | 345 |
| YE3-250M-2P | 55 | 75 | 2970 | 98.5 | 93.6 | 94.3 | 176.85 | 89 | 422 |
| YE3-280S-2P | 75 | 100 | 2975 | 133.7 | 127.0 | 94.7 | 240.76 | 91 | 527 |
| YE3-280M-2P | 90 | 125 | 2975 | 159.9 | 151.9 | 95.0 | 288.91 | 91 | 578 |
| YE3-315S-2P | 110 | 150 | 2980 | 195.1 | 185.3 | 95.2 | 352.52 | 92 | 957 |
| YE3-315M-2P | 132 | 180 | 2975 | 233.6 | 221.9 | 95.4 | 423.73 | 92 | 987 |
| YE3-315L1-2P | 160 | 220 | 2975 | 279.4 | 265.4 | 95.6 | 513.61 | 92 | 1153 |
| YE3-315L2-2P | 200 | 270 | 2975 | 348.6 | 331.2 | 95.8 | 642.02 | 92 | 1347 |
| YE3-355M-2P | 250 | 340 | 2980 | 435.7 | 413.9 | 95.8 | 801.17 | 100 | 1655 |
| YE3-355L-2P | 315 | 430 | 2980 | 543.0 | 515.9 | 95.8 | 1009.48 | 100 | 1838 |
| YE3-3551-2P | 355 | 425 | 2980 | 618.7 | 587.8 | 95.8 | 1130.1 | 104 | 2164 |
| YE3-3552-2P | 375 | 500 | 2980 | 653.9 | 620.9 | 95.8 | 1193.8 | 104 | 2235 |
1,100% copper wire, best quality materials construction according with national standard easy maintenance,precision winding
production of enameled wire,high thermal conductivity,good heat dissipation effect.
2, Superior Iron core,The raw material is made of cold rolled first-grade non-oriented silicon steel with good toughness and strong bearing capacity.
3, High precision rotor, 800 cold-rolled steel rotor,intelligent finishing,durable and long-lasting,new national standard rotor, through strict static and dynamic,balance test to ensure smooth operation and noise reduction.
Q: Are you Factory or Trading Company?
A: We are Factory. That has been focusing on motors and accessories for more than 20 years.
Q: What is your warranty?
A: Our warranty is One Year. Any parts damaged within warranty. We will provide new one for free and supply the solution.
Q: What kind of motor can you supply?
A: Single Phase Motor, Three Phase Motor, NEMA standard motor, Explosion Proof Motor etc.
Q: Do you offer OEM Service?
A: Yes. We offer OEM/ODM service.
Q: What is your lead Time?
A: Usually 10 days. Precise Time depend on Qty.
|
|

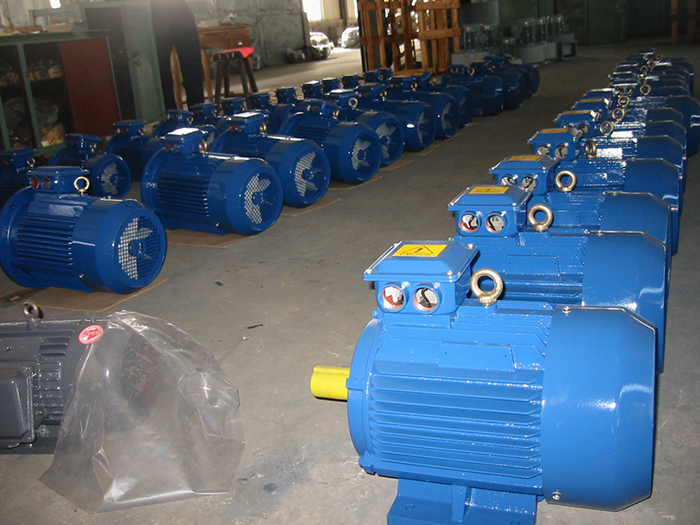

YE3 Electric Motor 2-Pole Three-Phase Asynchronous AC Induction Enclosed IE3 Efficiency 3000rpm 380V/220V AC Voltage for Pump Images
|
